TERRACE SYSTEMS > LIFT AND SLIDE > MB-77 HS/MB-77 HS HI

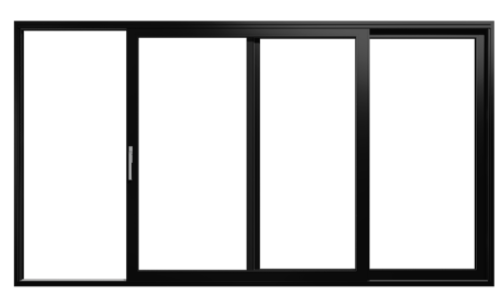

MB-77 HS Aluminium Lift and Slide Door

Big and robust aluminum lift and slide doors in modern design that are perfect
for single-family houses, as well as for luxurious apartments and hotels.

Advantages

  1. The possibility to execute large structures as a result of the application of high-quality aluminum profiles.

  2. Possibility to produce big glazing that ensures access to daylight in the room.

  3. A lot of daylight in the room ensured by the possibility to execute large-size structures.

  4. High energy efficiency level ensured by the application of a thermal break.

  5. Trendy structures are the comfortable wayout to the balcony, terrace or garden space.

  6. Thanks to the modern design and comfortable usage,  the door does not take up the space in the room after opening .

  7. The wide color range from RAL palette is an asset of aluminum doors.

  8. Great functionality and intelligent solutions thanks to  installation of automatic drive whick can be controlled by a button or a remote control.

Technical Data

Glass
Glass packages available up to 55 mm. One-chamber glass package with thermal transmittance - Ug =1,0 W/(m2K) according to the PN-EN674 norm in standard. The possibility to apply three-glass package with Ug = 0,5 W/(m2K) coefficient the possibility to apply glasses with enhanced sound insulation, tempered, safety, anti-burglary, ornament or solar protective. Steel galvanized spacer frame in standard, optionally Swisspacer Ultimate available in various colour options.


Fittings
Lift and slide, two locking points and micro ventilation bolt in standard.

Possibility to produce a sash with weight of 400 kg.


Spacer frame
Steel galvanized spacer frame in standard, optionally Swisspacer Ultimate available in various colour options.


Profile
Aluminum profile with a thermal break and installation frame depth 174mm and sash depth – 77mm, optionally available in HI version with special insulating inserts inside the section and the space under window panes.


Threshold

Aluminum threshold with thermal break.


Colour range

According to the RAL color range and wood-grain coating from Aluprof Color Collection.


Gaskets

Made of EPDM.

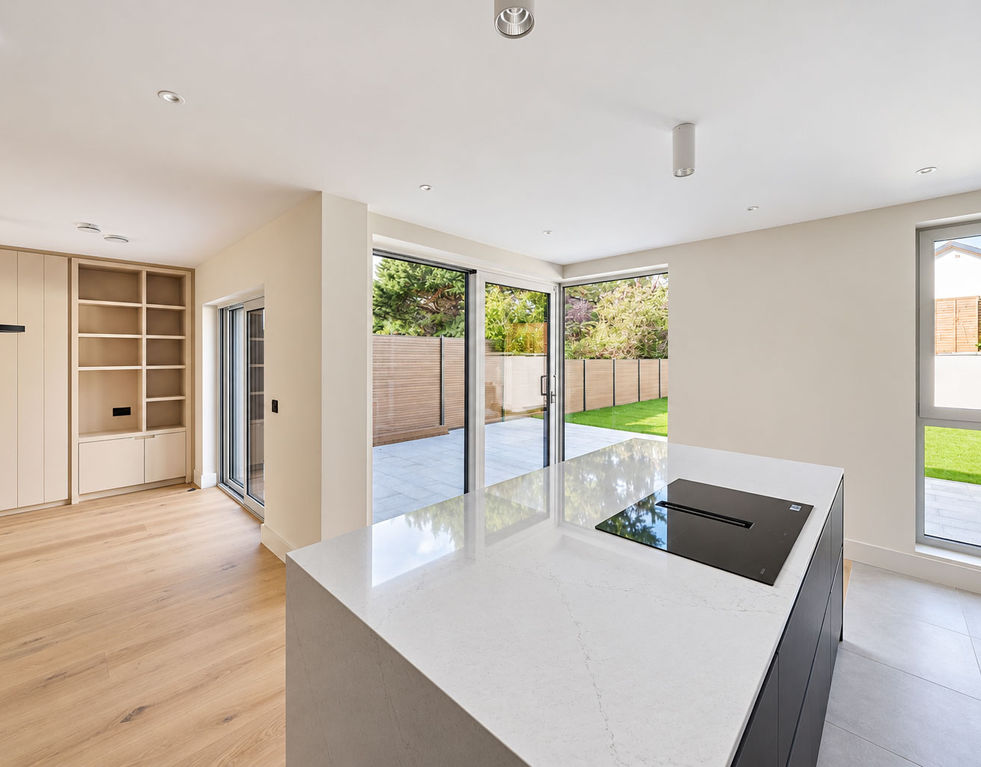

MB-77HS CORNER SYSTEM

Flats, houses or hotels with panoramic views of the surroundings are the dream of many clients during the construction process. The MB-77HS corner lift and slide door is the perfect choice for anyone looking to make most from their home, with incredible panoramic views and beautiful look. Some want to rest in the living room to stay away from the outside world, while others dream of the moment when they can breathe some air. However, true escape from the noise of everyday life is only possible in harmony with nature. The MB-77HS corner lift and slide door now allows you to open the living room from either side of the construction without a pillar. This solution provides access to exterior views and the ability to decorate the building in an original and modern way.​

With this system, you have more space and more options when it comes to design. For the door to be functional and aesthetically pleasing, high quality materials, technology and sophisticated design are required. The MB-77HS system is a perfect mix of them. It is characterized by energy savings, functionality, comfort and aesthetics.
